Filed Testing of Double-Bell heaters.
By Alex Chernov
www.stovemaster.com
Introduction
This winter, I have got a permission to perform some testing from
several clients that had heaters with the new firebox system. One heater
was build the next door, and I had the opportunity to do several runs
with some variations of air supply system to find out what works the
best for combustion. The test results with description of heaters are
below. My conclusions will follow at the end.
Although I clearly understand that to be scientifically correct, each
version has to be tested at least 10 or 20 times to find if the results
are reliable. However, I don't have this opportunity. I don't have a
specialized lab, I don't have time for this time consuming procedure as I
keep working and have a very busy schedule. This winter, I have spent
over a week of my between-the-projects-free-time away from my family
every evening doing testing to gather this information. Regardless of the
fact that these are just few test runs, I find the results interesting
and helpful for myself. I also believe they may be interesting for other
stove masons.
Notes:
. I haven't done testing on heaters in my home with the original, non-modified fireboxes. We have done this testing with Norbert Senf and Jerry Frisch and found, as was stated before, that the combustion was on a dirtier side. Test report is here: http://www.mha-net.org/docs/v8n2/wildac06c.htm I could try to run another test of the original fireboxes, however, it probably wouldn't have reliable results as my TESTO has a low limit for CO measurement (4000ppm), and I wouldn't be able to gather exact data. I have decided to modify the fireboxes and run the test of new versions instead.
. In a typical lab test setting, the analyzer's probe should be inserted into the chimney flue approximately immediately above the chimney damper. In contraflow and other bottom-vented designs it means that temperature is measured in the chimneystack outside the heater's core. Due to the fact that all my test heaters were "real-life" heaters owned by my clients, and due to the technical impossibility to access the described point in many cases, all tested heaters except Whole Village heater were tested by inserting the probe through the shut-off damper slot that is located within the upper chamber of the heater (shut-off damper is typically located at the lower part of an updraft channel leading to the chimney as most of my heaters are top vented. This channel is often located in the middle of the upper "bell"). Therefore, it would be logical to expect that measured flue temperatures should be somewhat lower if they would be measured properly. Such difference in temperatures could result in even higher efficiency numbers. However, this is a presumption only.

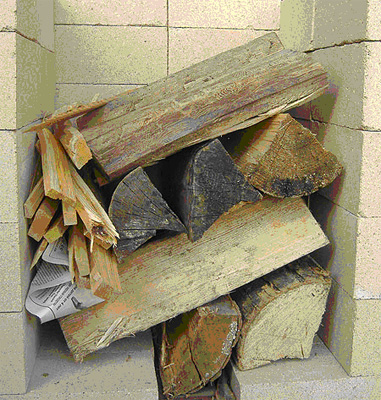

. Fuel loading and starting technique used in all test runs is "side-top kindling" developed by Norbert Senf. (see picture). Observations and test results proved substantial benefits of such technique. Logs get ignited from a top corner, and flames travel gradually in a diagonal pattern to eventually ignite all the pile, resulting in low start-up emissions in comparison with the "old way" (kindling and paper is placed underneath the logs).
. Tests were performed using TESTO-325M measuring Stack Temperature, Oxygen, and CO levels. CO2 levels were calculated from O2 levels using TESTO formulas.
. Test results were entered into a CONDAR test spreadsheet provided by Norbert Senf. All final results were recorded from the spreadsheet. It should be noted that formulas in spreadsheet use particulate emissions data to calculate efficiency numbers. Due to impossibility to measure PM-emissions in my field tests, average numbers for PM levels entered into the spreadsheet by Norbert Senf were used in the calculations. We believe that this provides pretty reliable results that would have minimal deviation from result were actual PM numbers are used.
. Despite of the fact that some loads burned longer than 2 hours (to the point when no embers left), all test results used 2-hour run length for a fair comparison between each other and between the results achieved in Lopez labs testing available on-line.
. In comparison to Europe, where CO emissions are regulated, it is PM emissions that are regulated in the North America. Unfortunately, there is no easy way to measure PM. It requires special expensive equipment and lab setting. Therefore, CO levels measurements were the only tool I had to judge about emissions. Although such approach may be considered incomplete, in my situation it is the only way that gives me relative comparison of different modifications in firebox design.
Description of the test heaters:
. AL: Lower of two stacked heaters in my home. This is a large multifunctional heater that has a cook-top over a large firebox, a bake oven, and a 5ft-long heated bench with heated back. The firebox doesn't have any provisions for the secondary air supply through the walls. The heater's UPO door has built-in air wash-secondary air system. The firebox originally had a very large grate. For this test, I have covered part of the grate with firebricks to get grate dimensions similar to other tested heaters (5x15").
. AU: Upper of two stacked heaters in my home. It is a medium size heater with a "white" bake oven and a heated bench at the side opposite to firebox. The firebox has 5x15" grate. No provisions for the secondary air. Norbert's door without air supply. Originally, I had a very narrow (3/8" to ?"wide) slot behind the door for air wash. This size didn't work well. For this test, I have covered up the grate 95% with firebricks, and increased size of the air wash slot to 1 ?"x 12" to become the main combustion air supply slot. Norbert's report about construction of my heaters is available here:
http://www.mha-net.org/docs/v8n2/docs/Workshop0509.htm
. DS: Damascus Heater. A symmetrical 48"x32"double-bell heater with a direct bake-oven above the firebox. The heater is 9ft tall. The firebox has a 5x15" grate, UPO door with built-in air wash system, and secondary air supply through ?"-wide channels in-between the firebox walls and a single row of air outlets at the top of the firebox.
. NH: New Hamburg Heater. An L-shaped heater with larger firebox and direct bake oven above the firebox. The firebox gas 5x15 grate, UPO door with built-in air wash system, and secondary air supply through 3/4"-wide channels in-between the firebox walls and 3 rows of air outlets located around perimeter of the firebox. There are also several small secondary air outlets located directly in the dry joint.
. WV: Whole Village Heater. A large non-symmetrical heater with a direct bake oven above the firebox and a 5ft-long heated bench with heated back. The original firebox design features: 5x15" grate, an 1 ?"x 9" slot in front of the Norbert's door, and secondary air supply through 3/4"-wide channels in-between the firebox walls and 3 rows of air outlets located around perimeter of the firebox. There is also a small secondary air outlet located directly in the dry joint. There were several test runs with original and modified air supply systems. Description of the versions: WV-01: original firebox design; WV-02: grate is completely covered; WV-03: half of the grate is covered; WV-04: grate is open and a dry joint is plugged.
Pictures and description of the tested heaters are available here: http://www.stovemaster.com/html_en/gallery.html
Conclusions and comments
Efficiency results.
Overall, all tested bell heaters with all modifications have shown very high efficiency numbers, where heat transfer efficiency value of 84.9% (AL-01 & WV-01) was the highest, and 76.8% (DS-01) was the lowest. Both low oxygen levels (the lowest average 8.71%) and low stack temperatures (the lowest average 212F) contributed to high efficiency numbers.
It is a remarkable increase in comparison with efficiency results discovered in OMNI 5-heaters test in 1992. Five heaters tested by OMNI were Biofire, Contraflow KIT, Tulikivi, Swedish Royal Crown, and Grundofen. The net efficiency numbers were as follows: Biofire - 54%; Contraflow KIT-54%; Tulikivi-59%; Grundofen - 60%; Royal Crown-65%. Average net efficiency was 58.4%.
In comparison, net efficiency of tested bell heaters: DS-01: 73%, NH-01: 74%; AU-01: 78%; WV: 80% and AL-01: 82%. Average: 78.6% that is 20.2% higher then heaters in OMNI testing.
The tested bell heaters had different shape and size. All the heaters had firebox of approximately the same size and volume. Test results have proven my idea that larger heaters would have higher efficiency than smaller heaters with the same firebox. It also proves, that in the most common shape of heaters (36x48" rectangular) 18x18" firebox is too large to achieve highest possible efficiency in the available volume (DS-01, heater in such shape and size, had the lowest efficiency number of all tested). Both heaters with extra heat exchange volume (heated benches), AL-01 and WV, had the highest efficiency numbers.
These results allow me to conclude that bell heaters do offer higher efficiency despite of their size, shape and functions.
CO emissions results
All tested heaters, despite of modifications to air supply system, had average CO levels in the range between 0.13% and 0.28% that is within the 0.30% limit set up in the EU draft regulations document (we don't have any guidance for CO levels in North America.).
Heaters featuring under fire air supply (grate) and no preheated secondary air supply thorough the sides of the firebox generally shown higher CO emissions. Heaters with 3 rows of air outlets for the secondary air supply in the firebox walls were burning cleaner even with full under fire grate. Version WV-02 with over fire air supply and secondary air supply (no grate) was the cleanest, featuring average CO levels of 0.13%. However, the cycle was much longer due to the fact that combustion was very slow at the coals stage. Half grate version, on my opinion, gave the best results.
My conclusion is that a small under fire grate and secondary air supply system with wider slots and 3 rows of air outlets are beneficial to facilitate clean combustion. Presence of a small under fire grate doesn't seem to have a great negative influence on emissions. The grate could also be partially covered with one of the logs while loading to create an "automatic grate damper".
In regards to the under fire versus over fire question, it is interesting to note that none of all heaters, kahelofens, cookers etc I have seen at the Austrian Kahelofen Fair this January had under fire air supply. All had over fire air supply at the door with secondary air supply through the walls. The only company that had grates in their heaters, Finnish "Nunnaunni", had a special grate that allowed to open and close air supply thorough the grate. This seems logical considering that Austria and Germany have the toughest CO emissions level limit of 0.17%.
Summary of the test results:
* Temperatures for this heater were measured one extra time 15hrs after the test fire: Surface 155F; Bake Oven 240F; Firebox 220F.
Description of heater ID:
WV-01 Whole Village Heater Grate, Advanced Secondary Air Supply
WV-02 Whole Village Heater, NO Grate, Advanced Secondary Air Supply
WV-03 Whole Village Heater, 1/2 Grate, Advanced Secondary Air Supply
WV-04 Whole Village Heater, Grate, NO DRY JOINT, Adv. Secondary Air Supply
AL-01 Alex's Lower Heater, Grate, No secondary Air Supply
AU-01 Alex's Upper Heater, NO Grate. No Secondary Air Supply
NH-01 New Hamburg Heater, Grate, Advanced Secondary Air Supply
DS-01 Damascus Heater, Grate, Simplified Secondary Air Supply
|
|
|
|
|
|
|
